Take the AnyTone AT-5555N II mobile transceiver into your radio setup for 10-meter AM, FM, SSB, CW and PA operation.
-
Wide frequency coverage: Tune from 28.000 to 29.700 MHz across nine bands, with 40 programmable channels in each band.
-
High output power: Choose AM 60 W PEP, FM 50 W or SSB 60 W PEP, with RF power adjustment to tailor output.
-

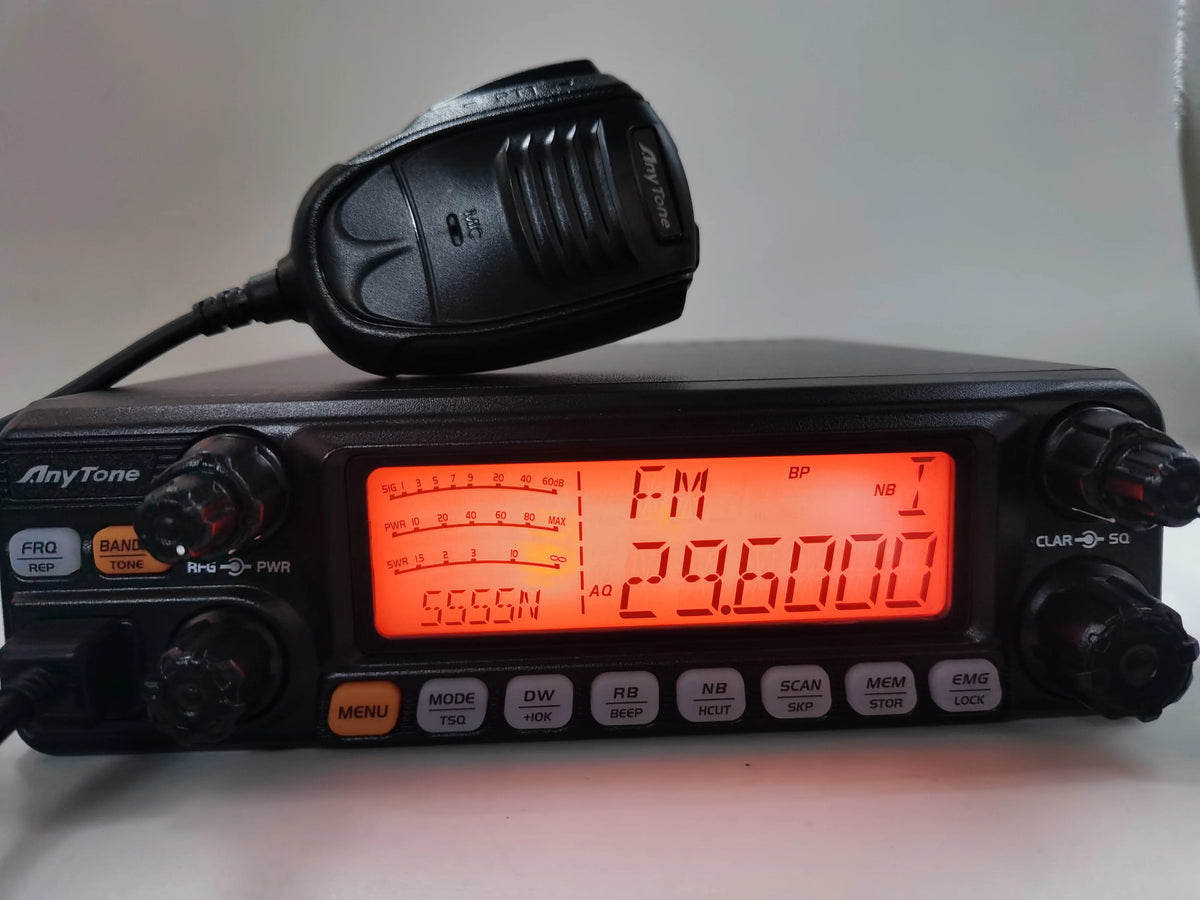

Clear, flexible controls: Use the large backlit LCD with dimmer, clarifier adjustment, scan, dual watch and key lock.
-
More receiver features: Access a 136–174 MHz FM receiver, weather channels and alerts, plus CTCSS/DCS and SWR protection. The unit measures 283 × 200 × 60 mm, weighs 1.75 kg and uses a 13.8 V input.
Frequency Range |
28.000~29.700MHz |
Frequency Band |
A/B/C/D/E/F/G/H/I |
Channel |
40channels(programmable)in each band |
Frequency Control |
Phase-Locked-Loop Synthesizer |
Temperature Range |
-20℃ to +50℃ |
Input Voltage |
13.8V |

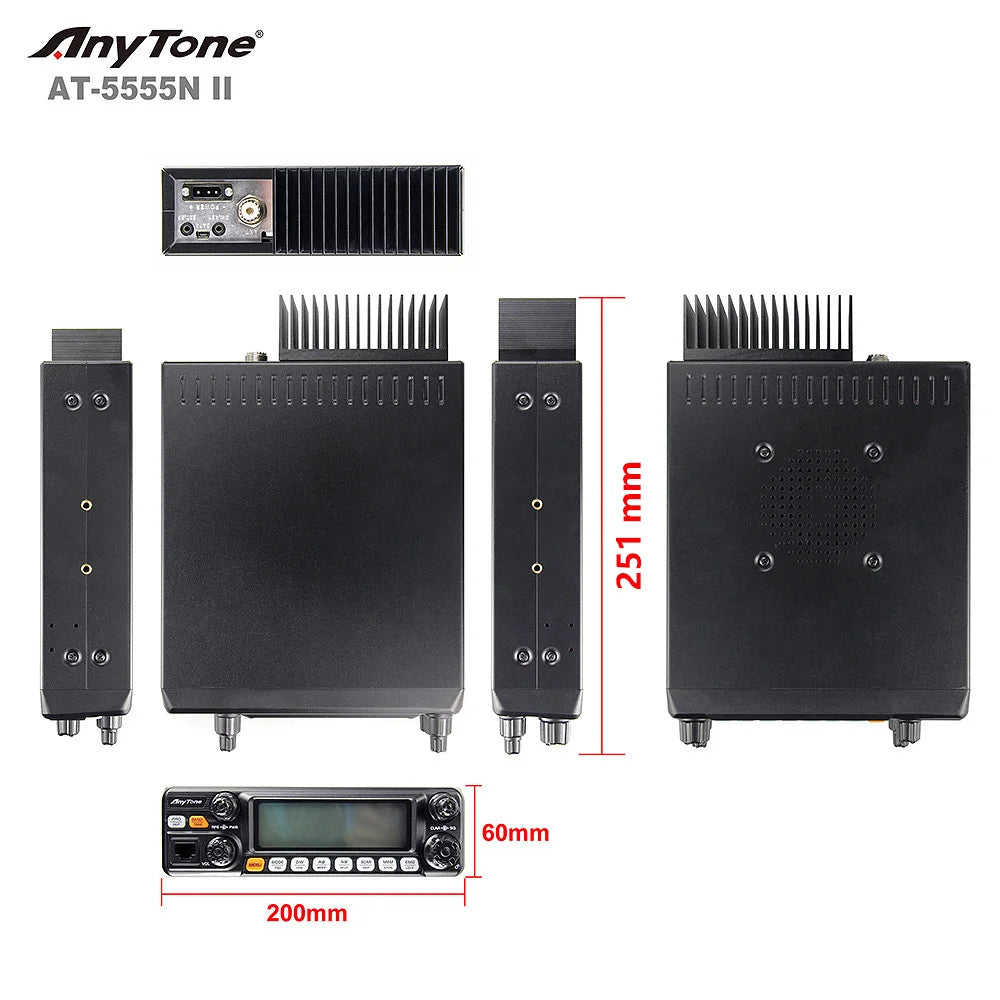

Dimensions (in mm) |
283(L)x200(W)x60(H) |
Weight |
1.75kg |
Power Output |
AM PEP: 60W/FM: 50W/SSB: 60W(PEP) |
Drain |
10A(with modulation) |
Modulation |
AM/FM/USB/LSB |
